Kopis mini 3"

Product image 1
1 / 17
+12

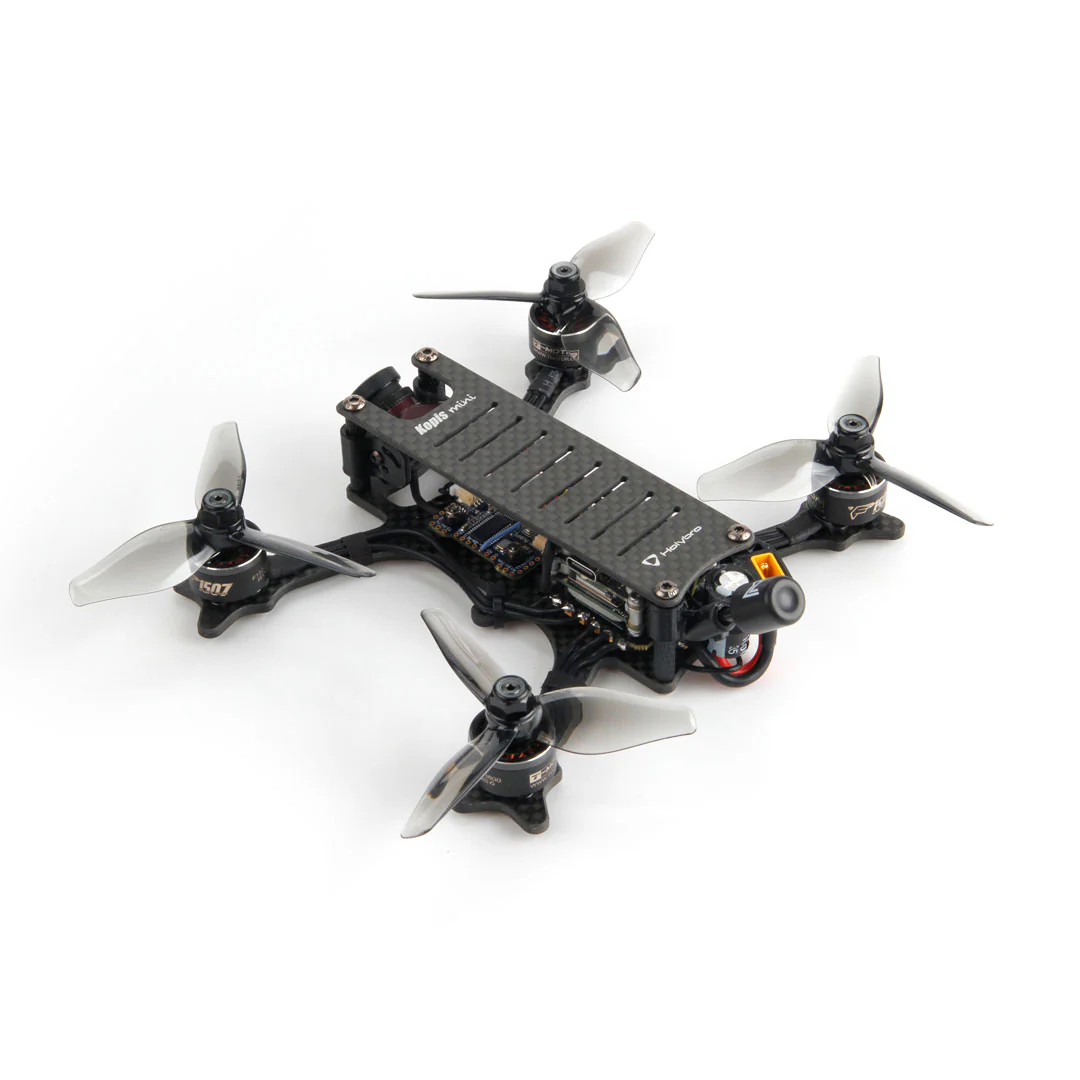

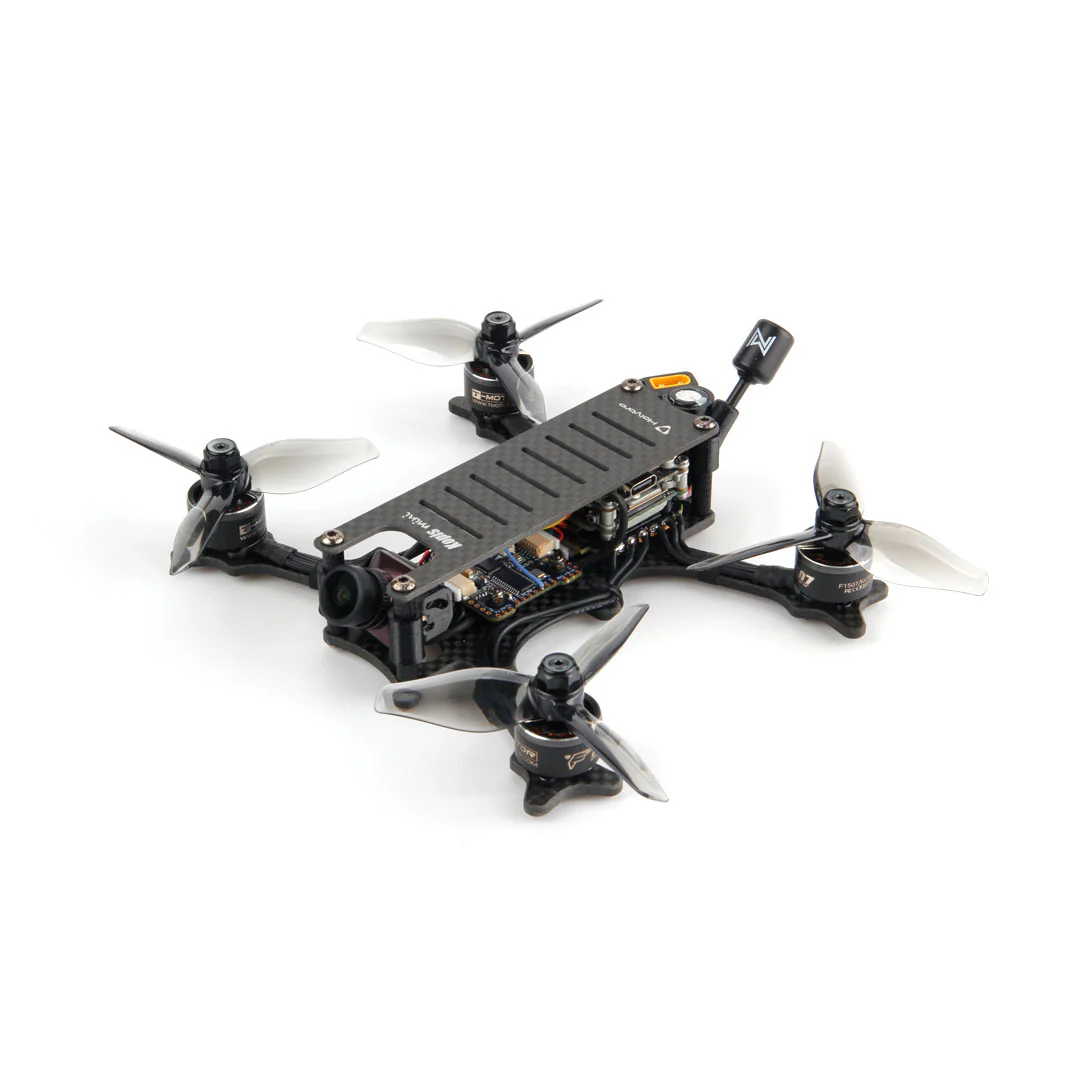

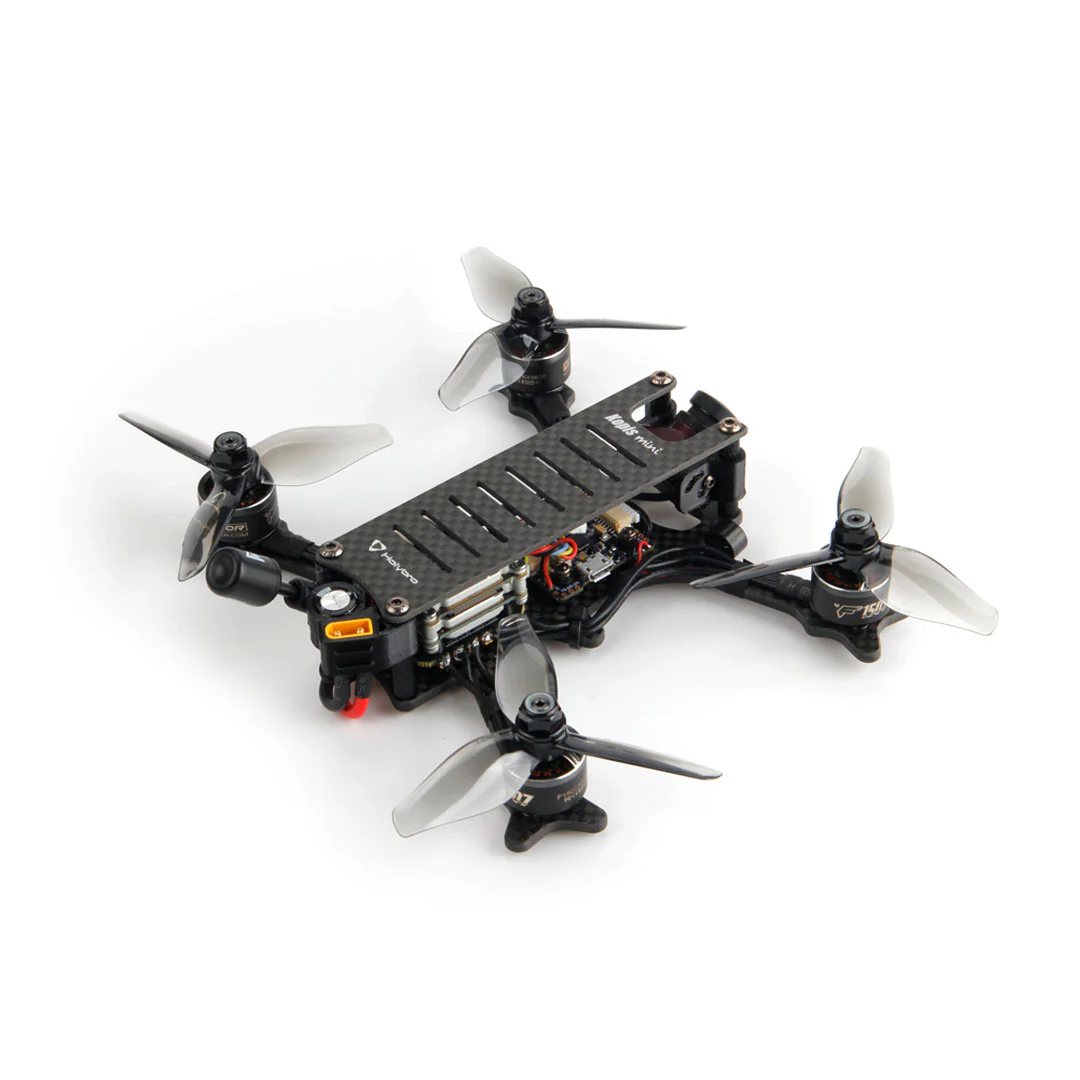

Kopis mini 3"

Updated:

1.FC:Kakute H7 V1.3
2.Digital HD Camera(HD version):Caddx Nebula Pro Vista Kit starlight Digital HD FPV system
3.ESC:Tekko32 F4 4in1 mini 50A ESC

Specifications

FC: Kakute H7 V1.3
  • MCU - STM32H743 32-bit processor running at 480 MHz
  • IMU - MPU6000
  • Barometer - BMP280
  • OSD - AT7456E
  • Onboard Bluetooth chip - ESP32-C3
    • SpeedyBee IOS & Android App Compatible
    • Note: The Bluetooth onboard is set to automatically turn off when the flight controller is unlocked (arm) and turn on automatically when the flight controller is locked (disarm) in Betaflight
  • 6x UARTs (1,2,3,4,6,7; UART2 is used for Bluetooth telemetry)
  • 9x PWM Outputs (8 Motor Output, 1 LED)
  • 2x JST-SH1.0 8pin ESC port (4in1 ESCs, x8/Octocopter compatible)
  • 1x JST-SH1.0 6pin VTX port (For HD System like Caddx Vista & Air Unit)
  • Battery input voltage: 3S - 8S
  • BEC 5V 2A Cont.
  • BEC 9V 3A Cont
  • USB Type-C
  • Mounting - 30.5 x 30.5mm/Φ4mm hole with Φ3mm Grommets
  • Dimension - 35x35mm
  • Weight - 8g
ESC: Tekko32 F4 4in1 50A mini ESC
  • F4 MCU with BLHELI32 firmware
  • Continuous Current: 50A x4
  • Burst Current: 60A x4
  • Battery Supports: 4-6S
  • PWM Frequency: 16k to 96k
  • Supports DShot 150/300/600/1200/2400
  • Supports MultiShot/OneShot/Proshot/PWM etc.
  • ESC telemetry Supported
  • Onboard analog current sensor
  • BLHeli_32 firmware
  • 1000uf 35v capacitor included (highly recommended for 6s setup)
  • Mounting holes: 3.6mm @ 20x20mm, compatible with either M2& M3 Rubber Gourmet (Included)
  • Dimension: 32 x 40 mm

    Kopis mini 3"(HD version) #30114,#30127

    Features

    • Frame:3mm 3k carbon fiber
    • Flight Controller:Kakute H7
    • ESC:Tekko32 F4 4in1 45A mini ESC
    • VTx:Caddx Nebula Pro Vista Kit Digital HD FPV system(Optional)

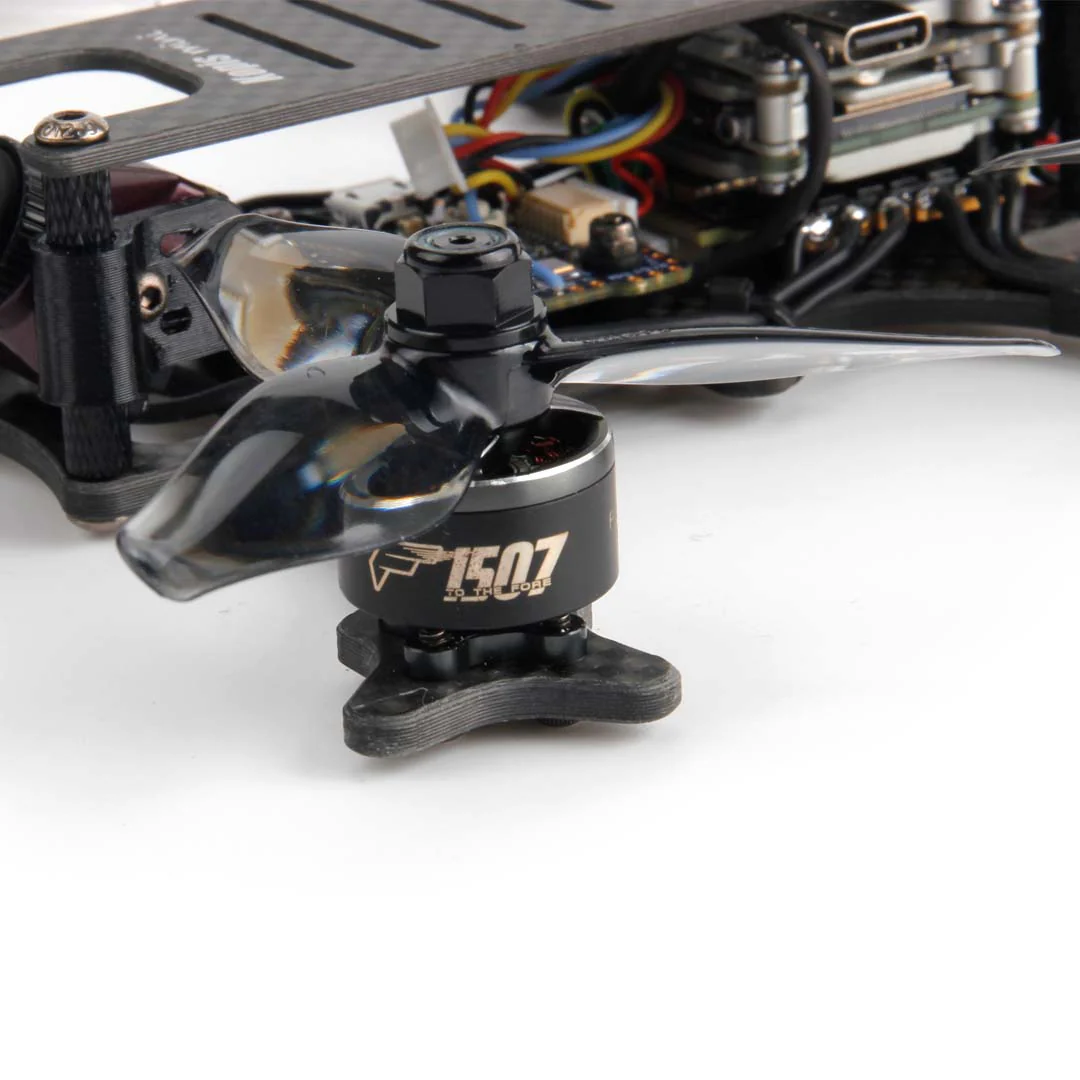

    • Motor：F1507 KV3800(Standard)
    • Propeller：T3140
    • Buzzer included.
    • Battery plug: XT30
    • Wheelbase: 148.6mm
    • Weight:198g（included CADDX Vista）
    • Recommend battery: 650mah~1300mah 4s

    Includes:

    • 1x Kopis mini FPV racing drone
    • Caddx Nebula Pro Vista Kit Digital HD FPV system (optional)
    • 4x T3140 Propeller
    • 1x Carying case
    • 1x Battery strap(installed)

    Kopis mini 3"(Analog version) #30067,#30068

    Features

    • Frame:3mm 3k carbon fiber
    • Flight Controller:Kakute H7 V2
    • ESC:Tekko32 F4 4in1 45A mini ESC
    • VTx:Atlatl HV V2
    • Motor:F1507 KV3800(Standard)
    • Propeller:T3140
    • FPV camera:1200TVL Foxeer Micro Razer FPV Camera
    • Adjustable camera uptilt from 0 degrees to 90 degrees
    • Buzzer included.
    • Battery plug: XT30
    • Wheelbase: 148.6mm
    • Weight:173g
    • Recommend battery: 650mah~1300mah 4s

    Includes:

    • 1x Kopis mini FPV racing drone
    • 4x T3140 Propeller
    • 1x Protective Case Mount for GoPro Hero5
    • 1x Battery strap(installed)

    Please note: Starting from April 12th, 2022, all Kopis BNF will no longer include the Kopis Carry case.

    Manual:

    Holybro_Kopis-mini(Analog  version)_Manual

    Holybro_Kopis-mini(HD version)_Manual

    3D Print:

    Holybro_Kopis-mini_3D_Print.rar

    Setting:

    Kopis-Mini_3inch(KAKUTE H7 V1)DUMP



    Updated:

    1.FC:Kakute H7 V1.3
    2.Digital HD Camera(HD version):Caddx Nebula Pro Vista Kit starlight Digital HD FPV system
    3.ESC:Tekko32 F4 4in1 mini 50A ESC

    Specifications

    FC: Kakute H7 V1.3
    • MCU - STM32H743 32-bit processor running at 480 MHz
    • IMU - MPU6000
    • Barometer - BMP280
    • OSD - AT7456E
    • Onboard Bluetooth chip - ESP32-C3
      • SpeedyBee IOS & Android App Compatible
      • Note: The Bluetooth onboard is set to automatically turn off when the flight controller is unlocked (arm) and turn on automatically when the flight controller is locked (disarm) in Betaflight
    • 6x UARTs (1,2,3,4,6,7; UART2 is used for Bluetooth telemetry)
    • 9x PWM Outputs (8 Motor Output, 1 LED)
    • 2x JST-SH1.0 8pin ESC port (4in1 ESCs, x8/Octocopter compatible)
    • 1x JST-SH1.0 6pin VTX port (For HD System like Caddx Vista & Air Unit)
    • Battery input voltage: 3S - 8S
    • BEC 5V 2A Cont.
    • BEC 9V 3A Cont
    • USB Type-C
    • Mounting - 30.5 x 30.5mm/Φ4mm hole with Φ3mm Grommets
    • Dimension - 35x35mm
    • Weight - 8g
    ESC: Tekko32 F4 4in1 50A mini ESC
    • F4 MCU with BLHELI32 firmware
    • Continuous Current: 50A x4
    • Burst Current: 60A x4
    • Battery Supports: 4-6S
    • PWM Frequency: 16k to 96k
    • Supports DShot 150/300/600/1200/2400
    • Supports MultiShot/OneShot/Proshot/PWM etc.
    • ESC telemetry Supported
    • Onboard analog current sensor
    • BLHeli_32 firmware
    • 1000uf 35v capacitor included (highly recommended for 6s setup)
    • Mounting holes: 3.6mm @ 20x20mm, compatible with either M2& M3 Rubber Gourmet (Included)
    • Dimension: 32 x 40 mm

      Kopis mini 3"(HD version) #30114,#30127

      Features

      • Frame:3mm 3k carbon fiber
      • Flight Controller:Kakute H7
      • ESC:Tekko32 F4 4in1 45A mini ESC
      • VTx:Caddx Nebula Pro Vista Kit Digital HD FPV system(Optional)
      • Motor：F1507 KV3800(Standard)
      • Propeller：T3140
      • Buzzer included.
      • Battery plug: XT30
      • Wheelbase: 148.6mm
      • Weight:198g（included CADDX Vista）
      • Recommend battery: 650mah~1300mah 4s

      Includes:

      • 1x Kopis mini FPV racing drone
      • Caddx Nebula Pro Vista Kit Digital HD FPV system (optional)
      • 4x T3140 Propeller
      • 1x Carying case
      • 1x Battery strap(installed)

      Kopis mini 3"(Analog version) #30067,#30068

      Features

      • Frame:3mm 3k carbon fiber
      • Flight Controller:Kakute H7 V2
      • ESC:Tekko32 F4 4in1 45A mini ESC
      • VTx:Atlatl HV V2
      • Motor:F1507 KV3800(Standard)
      • Propeller:T3140
      • FPV camera:1200TVL Foxeer Micro Razer FPV Camera
      • Adjustable camera uptilt from 0 degrees to 90 degrees
      • Buzzer included.
      • Battery plug: XT30
      • Wheelbase: 148.6mm
      • Weight:173g
      • Recommend battery: 650mah~1300mah 4s

      Includes:

      • 1x Kopis mini FPV racing drone
      • 4x T3140 Propeller
      • 1x Protective Case Mount for GoPro Hero5
      • 1x Battery strap(installed)

      Please note: Starting from April 12th, 2022, all Kopis BNF will no longer include the Kopis Carry case.

      Manual:

      Holybro_Kopis-mini(Analog  version)_Manual

      Holybro_Kopis-mini(HD version)_Manual

      3D Print:

      Holybro_Kopis-mini_3D_Print.rar

      Setting:

      Kopis-Mini_3inch(KAKUTE H7 V1)DUMP
