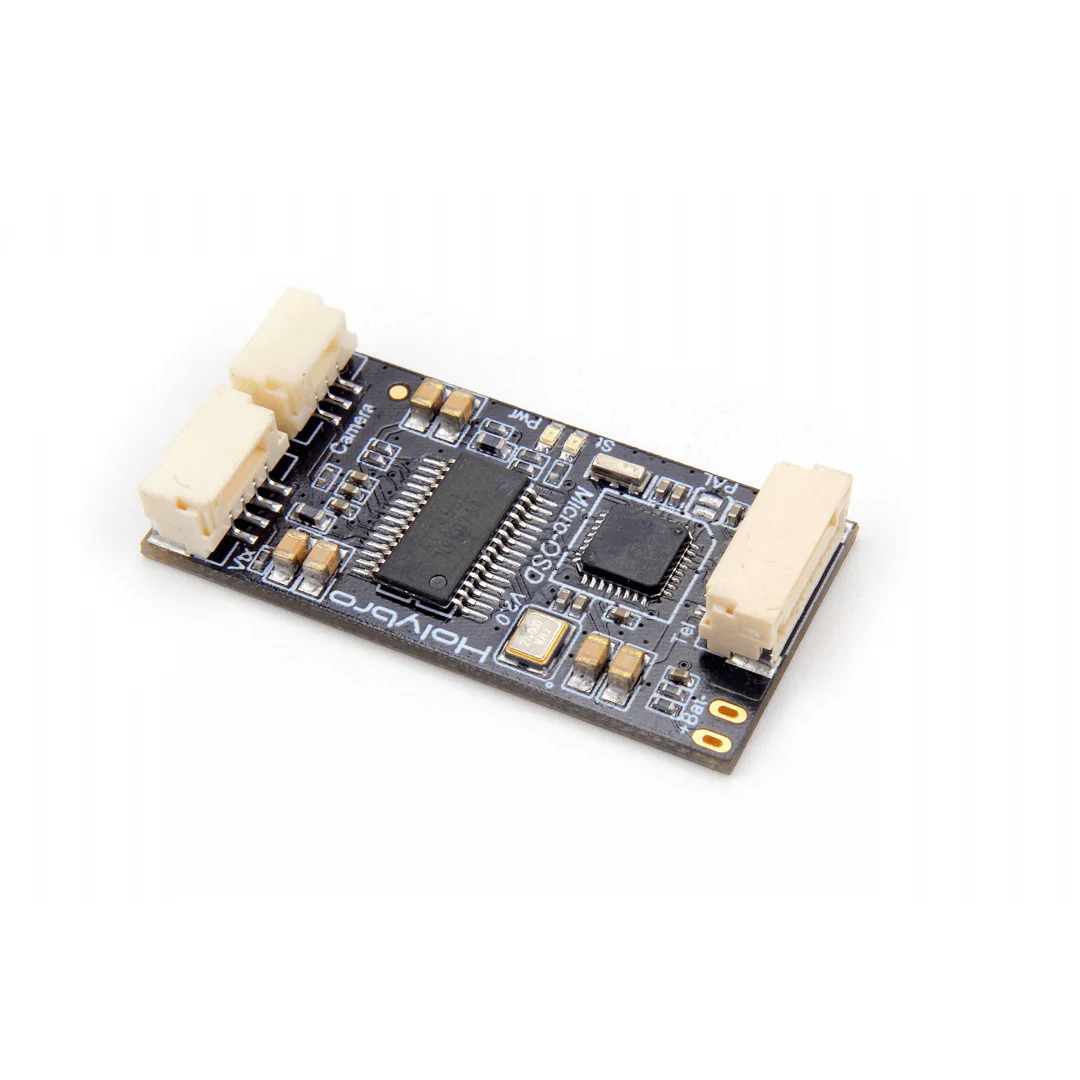

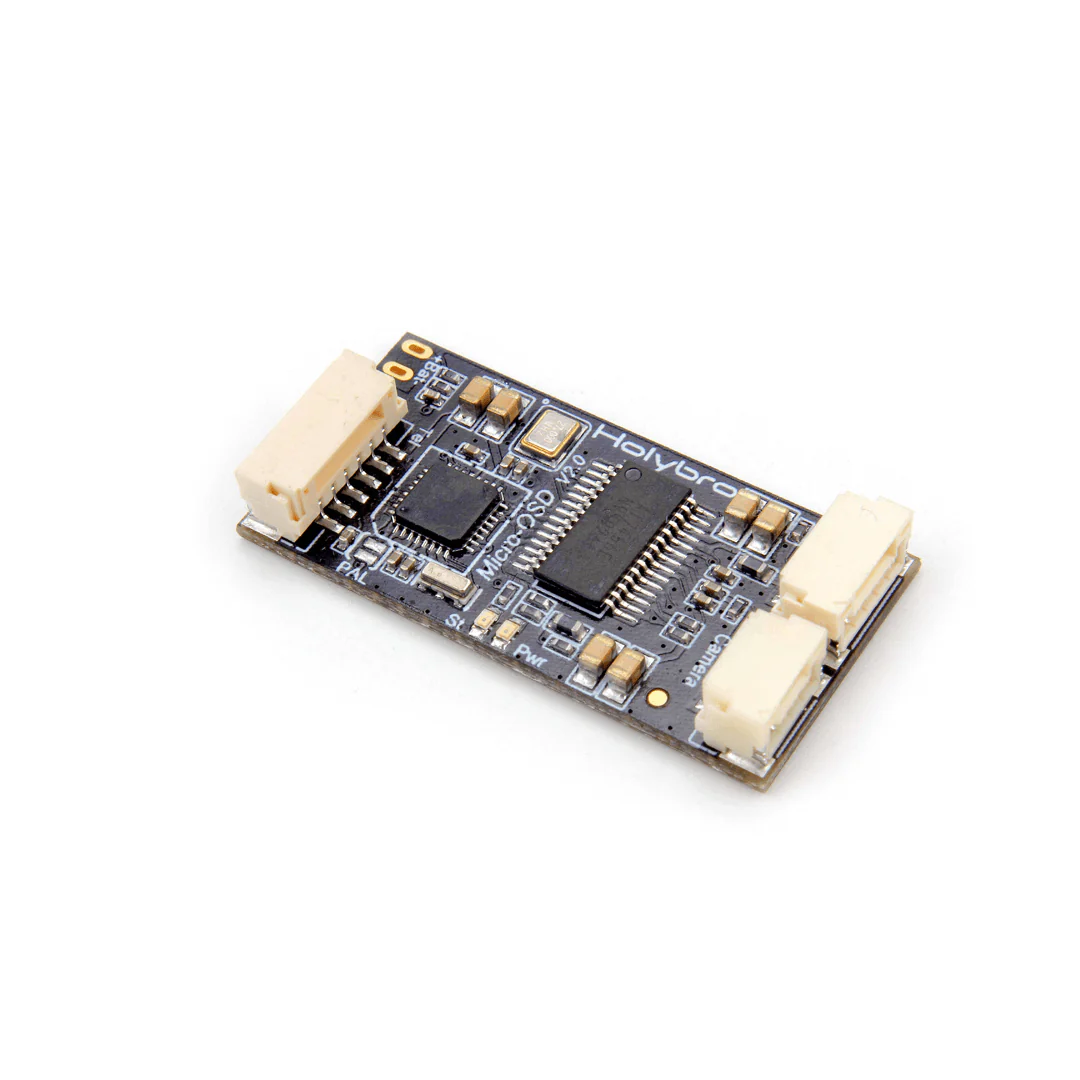

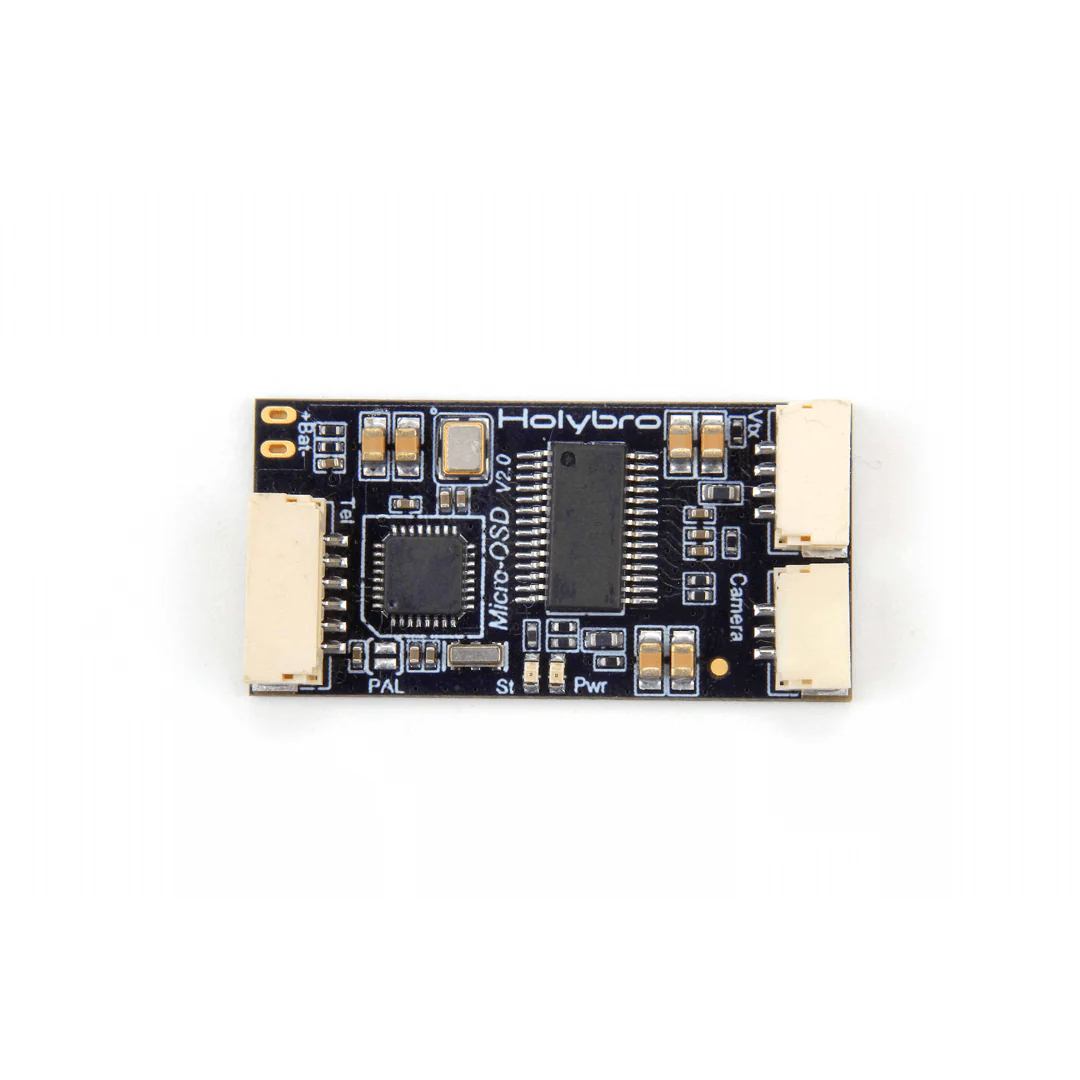

VTX & OSD

Specifications:

• ATmega328P with Arduino bootloader
• MAX7456 monochrome on-screen display
• GHR connectors
• Solder jumper for PAL video option
• Exposed test points for HSYNC and LOS
• Dimensions:17.5*35mm
• Weight:3g

Note: BAT+ is directly connected with VTx and Camera (Pay attention to the maximum voltage of your equipment)

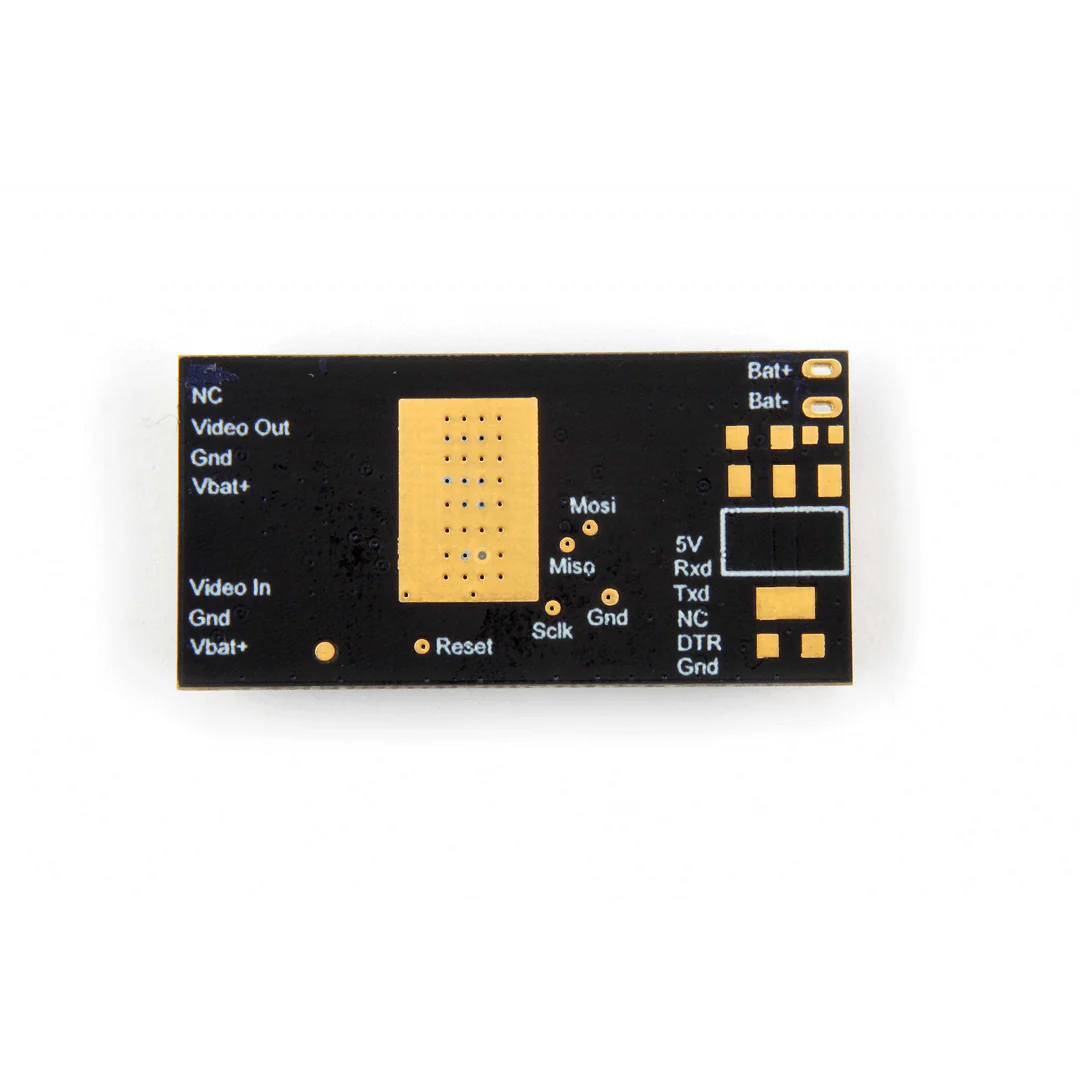

PIN MAP

Diagram

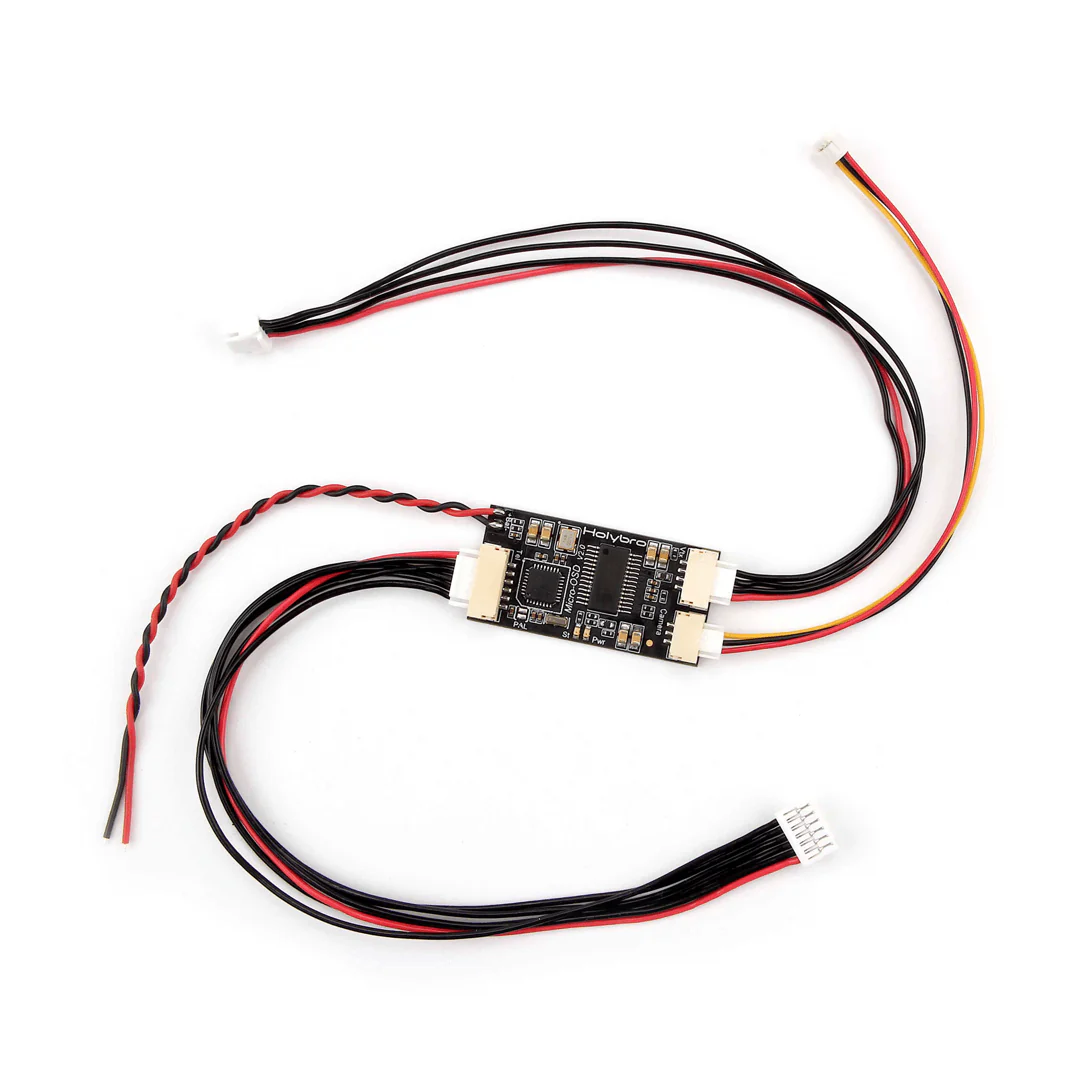

Included:

Micro OSD * 1
GH 6P cable * 1
GH 4P cable * 1
GH 3P cable * 1

Manual:

Holybro_Micro_OSD_V2_Manual.pdf

Download:

Holybro_MicroOSD_v2.0 Update software
