Description:

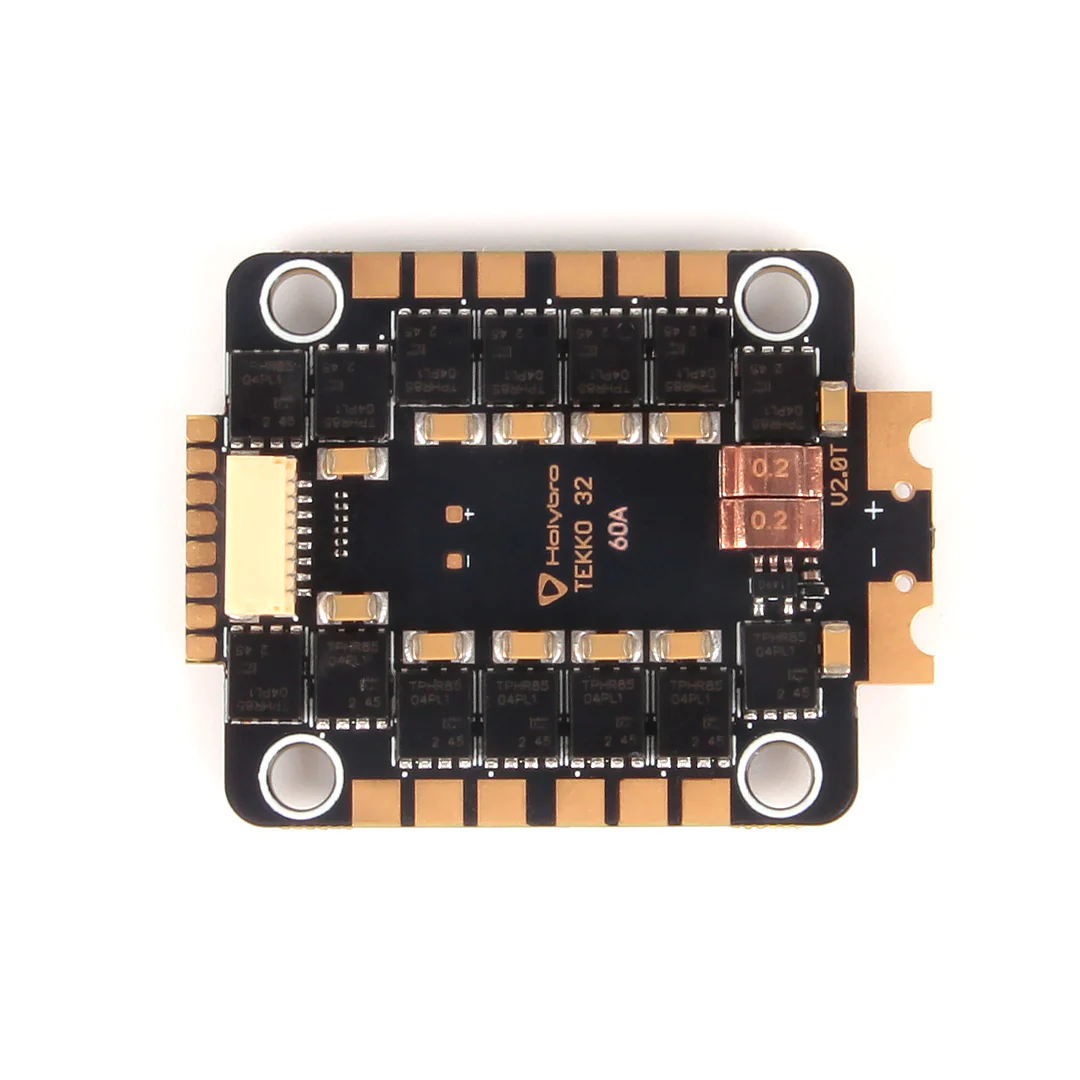

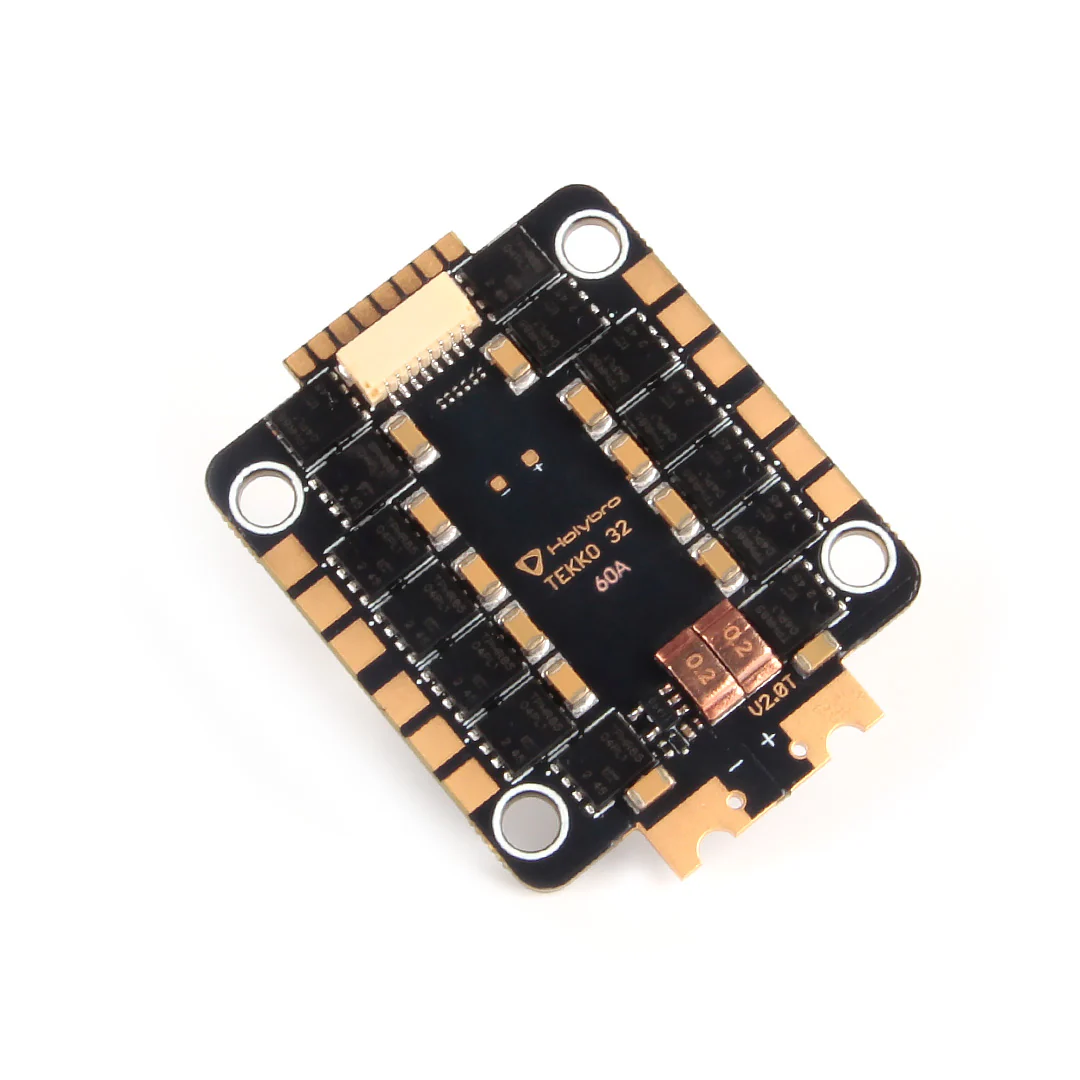

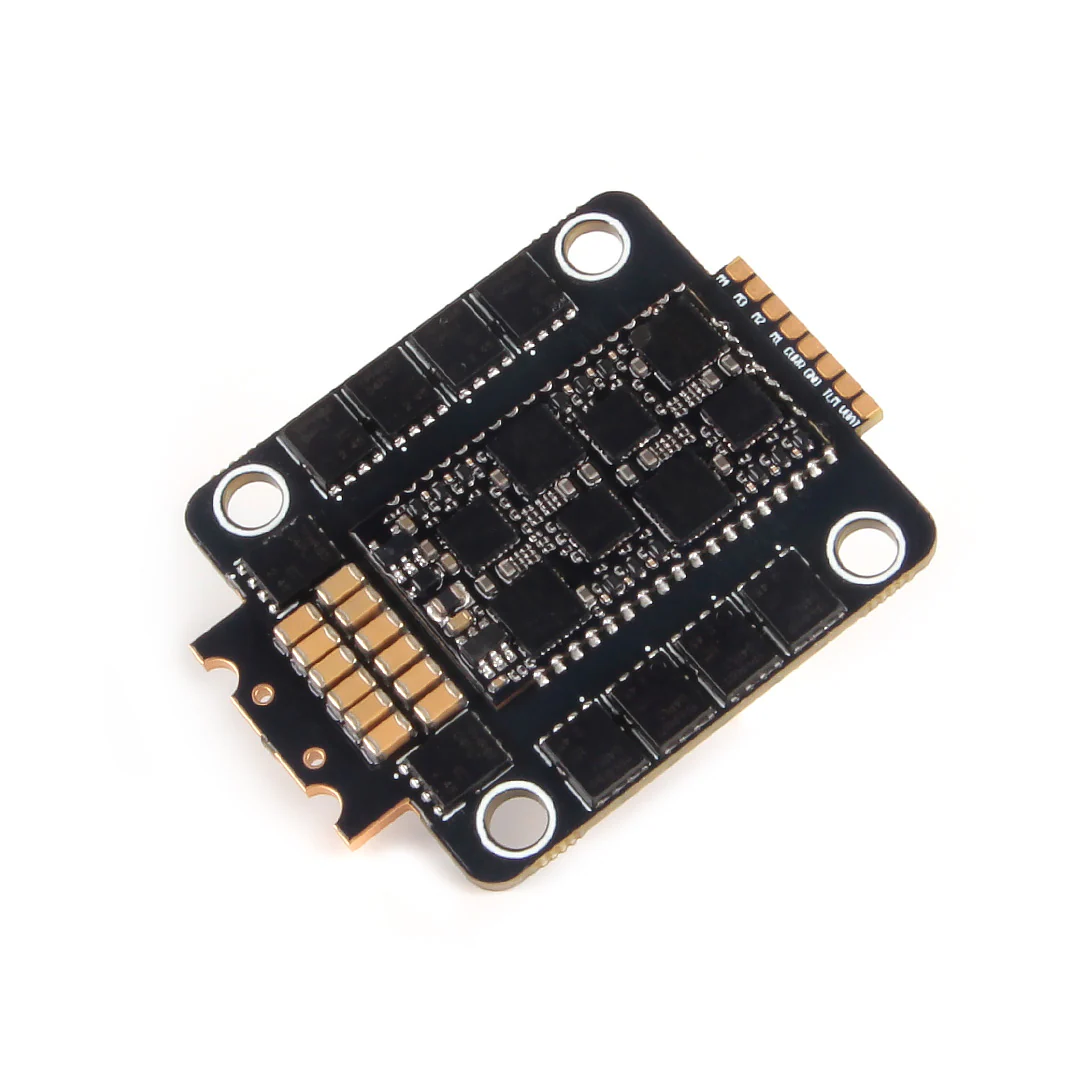

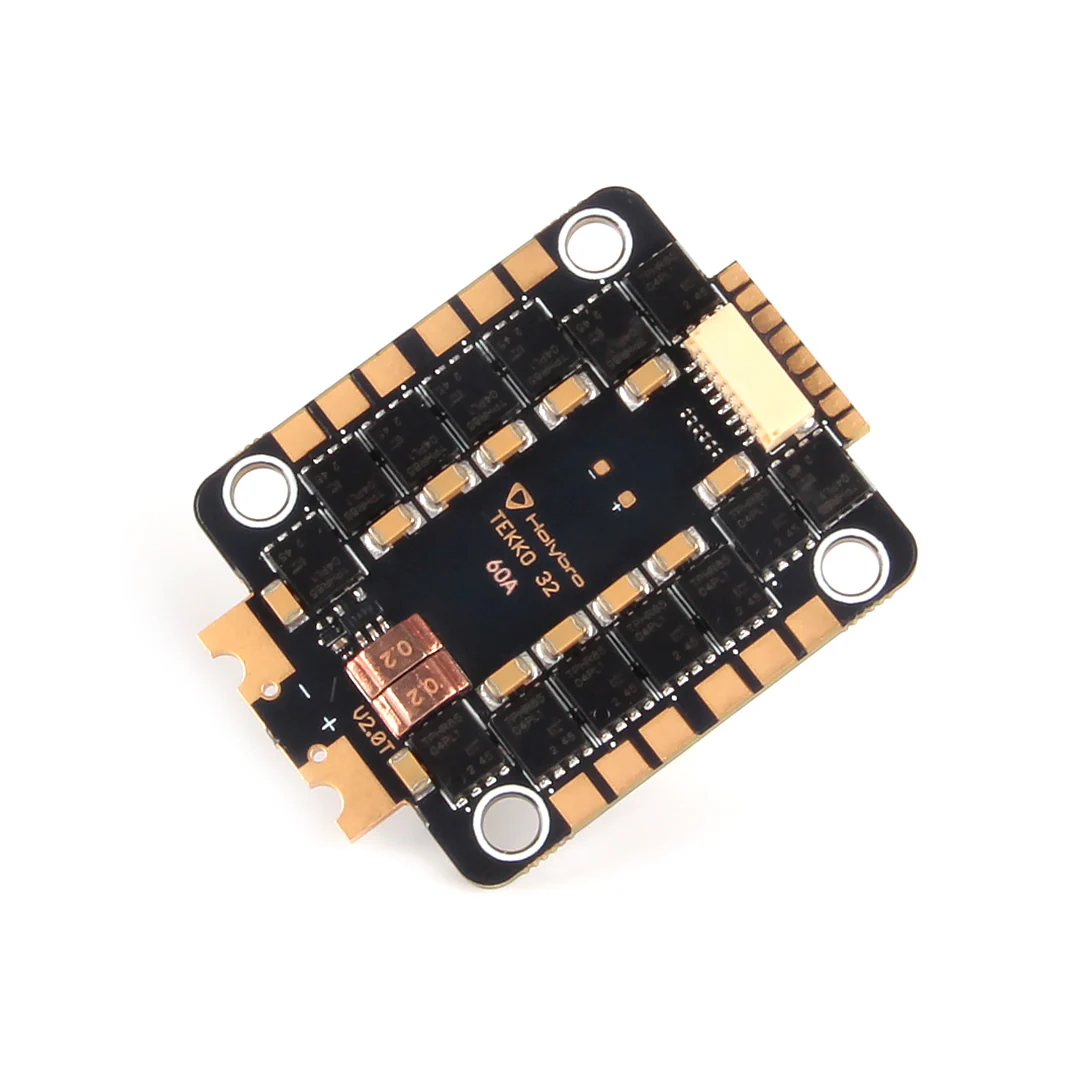

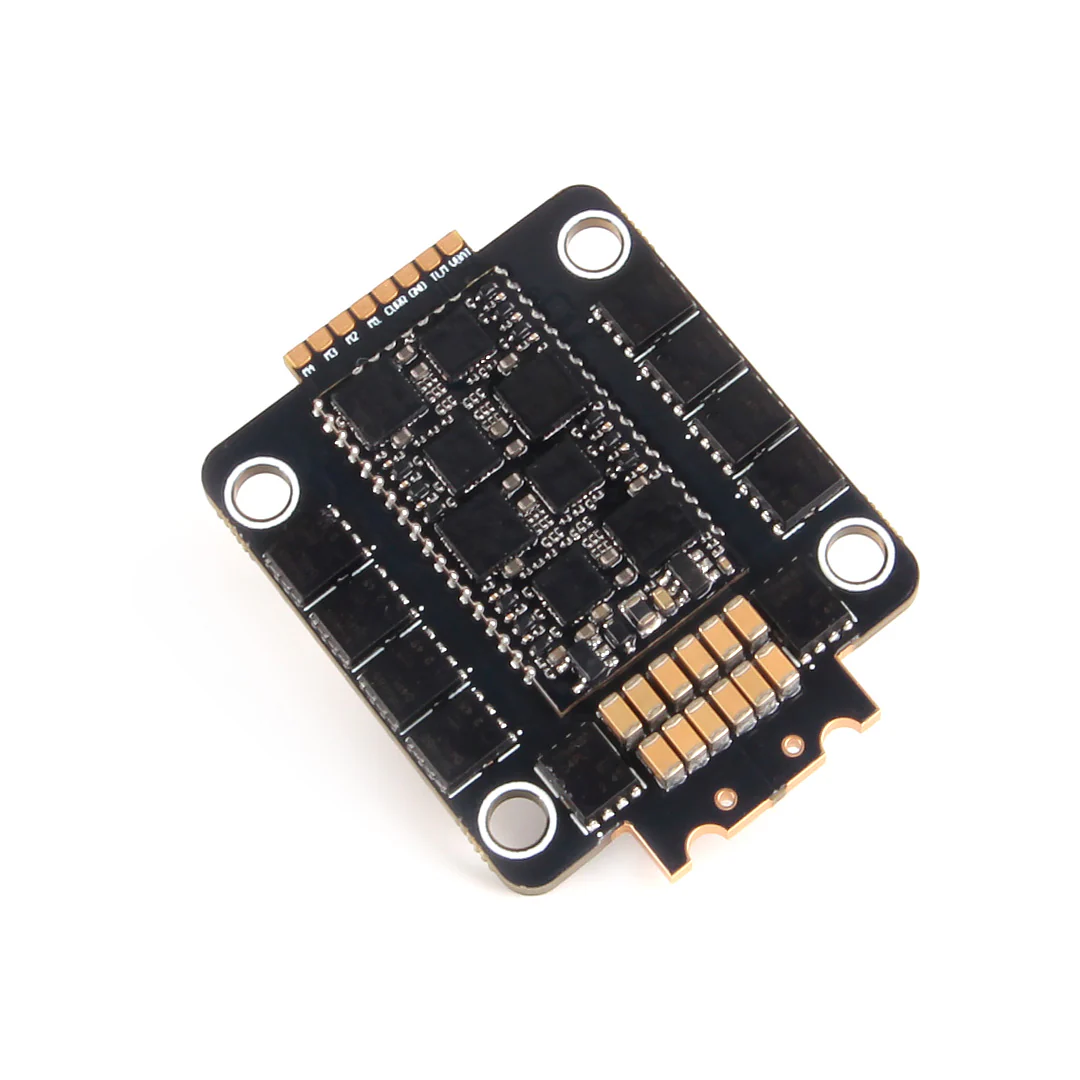

The Tekko32 F4 4in1 60A ESC is a high-performance electronic speed controller. This compact 4-in-1 ESC is designed with a 30x30 mounting pattern and supports 3-6S LiPo batteries. It has all new High-quality MOSFETs with low internal resistance and low heat generation, ensuring efficient power delivery and a smooth flight experience while allowing the ESC to boast a continuous current of 60A. It has a separate drive and control circuit to broaden the current capability of the drive circuit while reducing electrical interference in the control circuit.

Features:

• All new High-quality MOSFETs with low internal resistance and low heat generation
• Fast F4 MCU @150MHz (compared to F3 @108MHz & F0 @48MHz)
• A separate drive and control circuit, reducing the electrical interference
• Continuous Current Rating of 60 Amps

Specification:

• Continuous Current: 60A x4
• Burst Current: 70A x4
• Battery Supports: 4-6S
• PWM Frequency: 16k to 96k
• Supports DShot 150/300/600/1200/2400
• Supports MultiShot/OneShot/Proshot/PWM etc.
• ESC telemetry Supported
• Onboard analog current sensor
• 1000uf 35v capacitor included (highly recommended for 6s setup)
• Amperage meter scale ratio: 120
• Dimensions: 48x37x6mm / Weight: 15.7g
• Mounting holes: M4 30.5x30.5mm (M3 grommets included)

PIN MAP

Package includes:

1x  Tekko32 F4 4in1 60A ESC
4x  M3 Anti-Vibration Silicone Grommet Insert
1x  Electrolytic capacitor: 1000uF 35v
1x  8pin to 8pin 1mm pitch 65mm cable
1x  8pin to 8pin 1mm pitch 25mm cable
