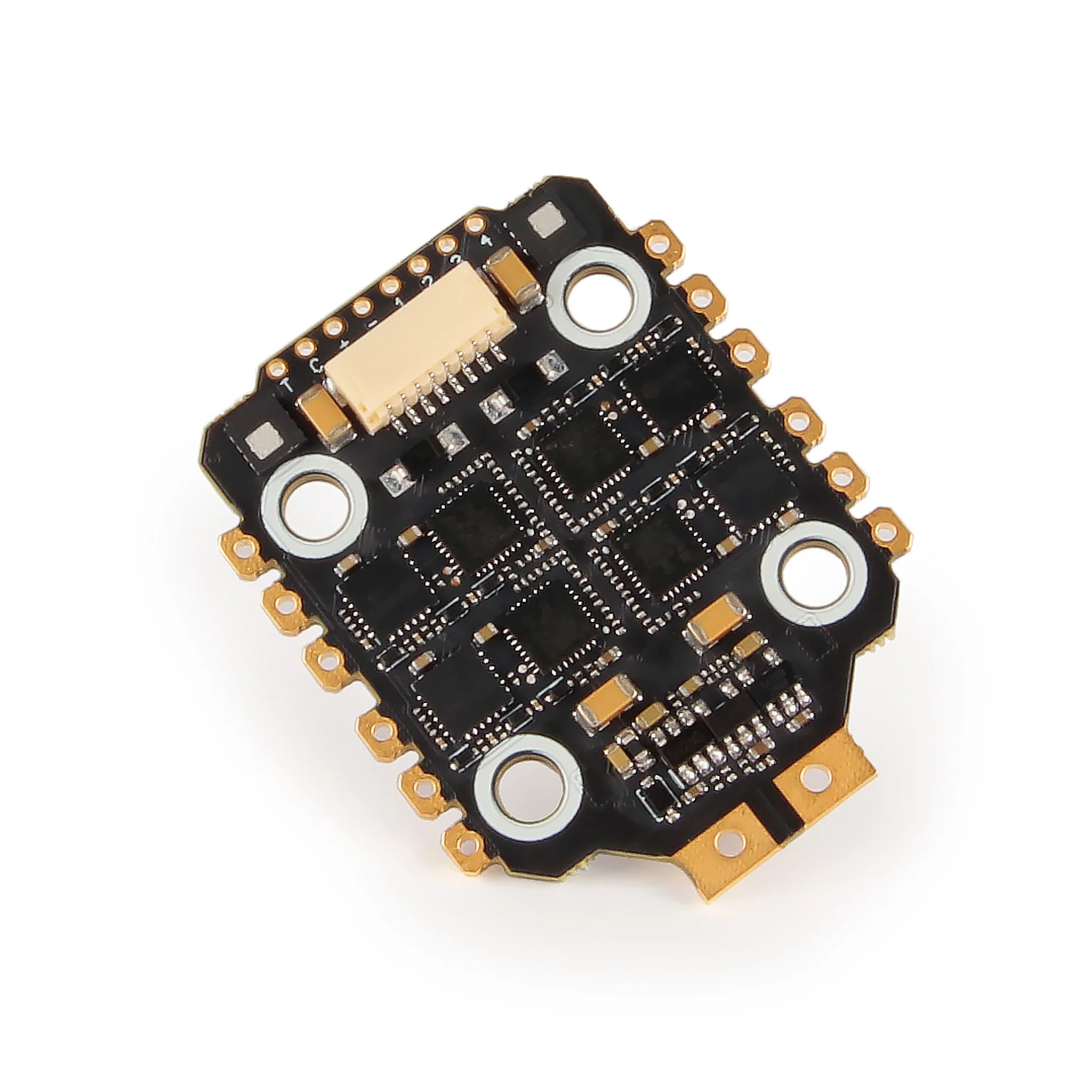

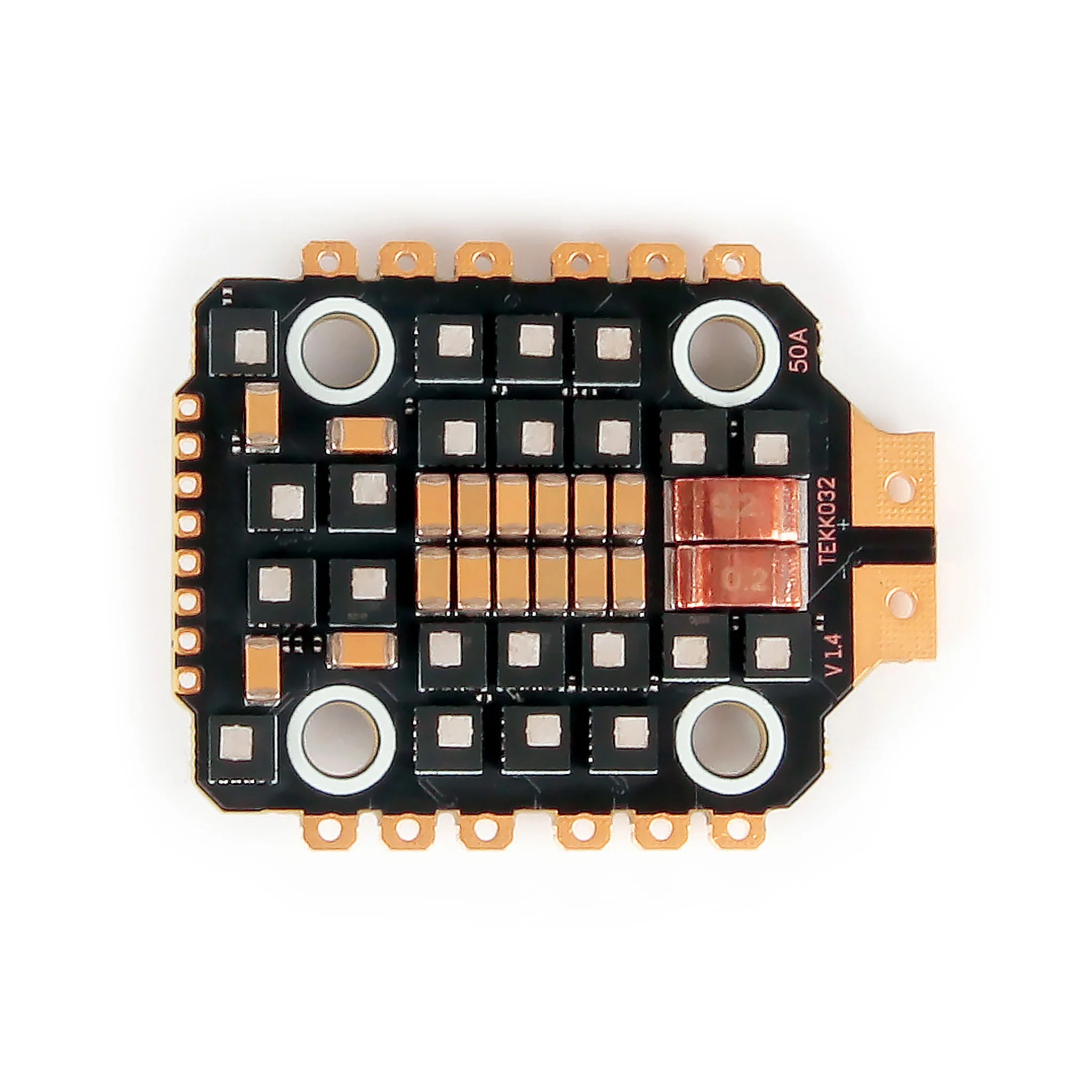

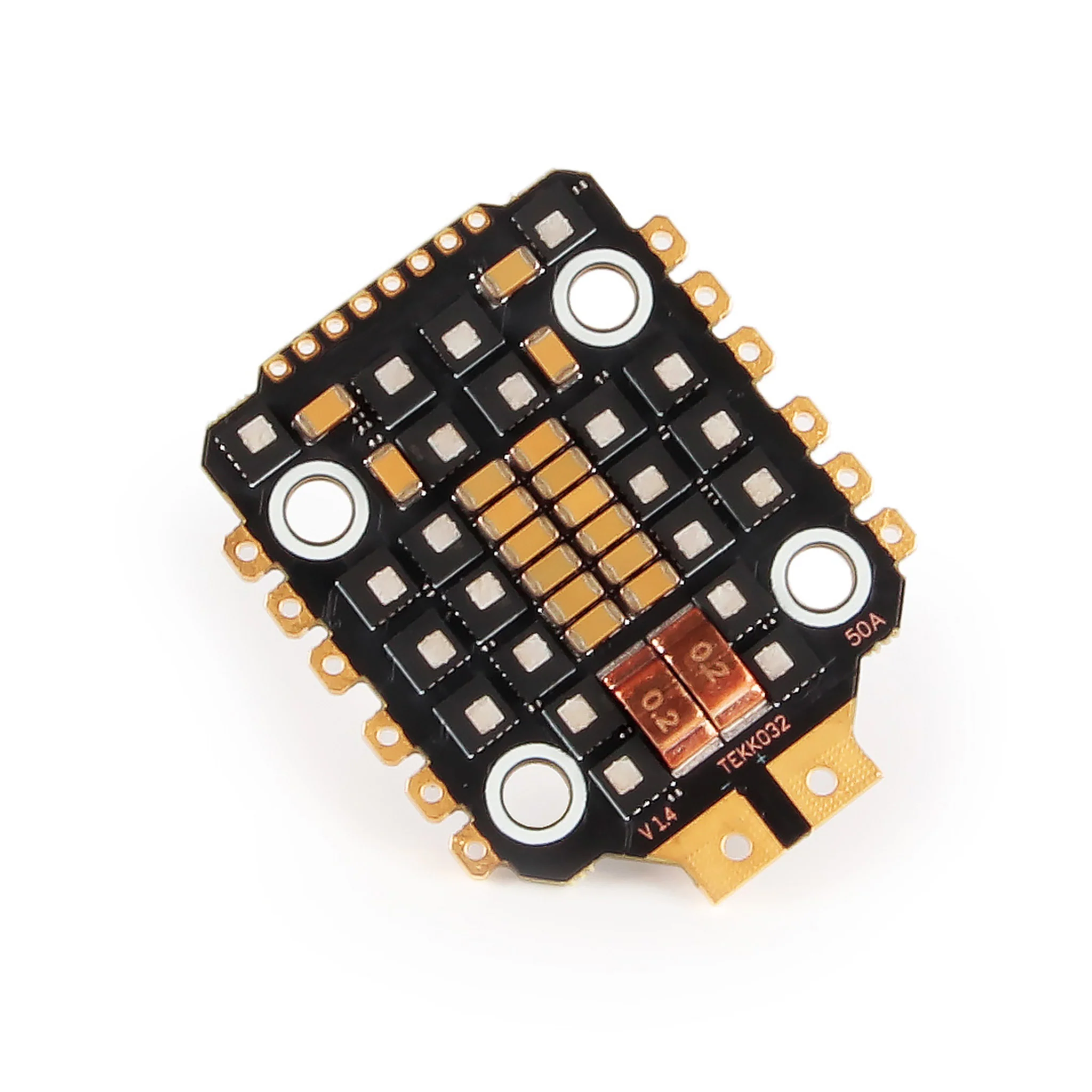

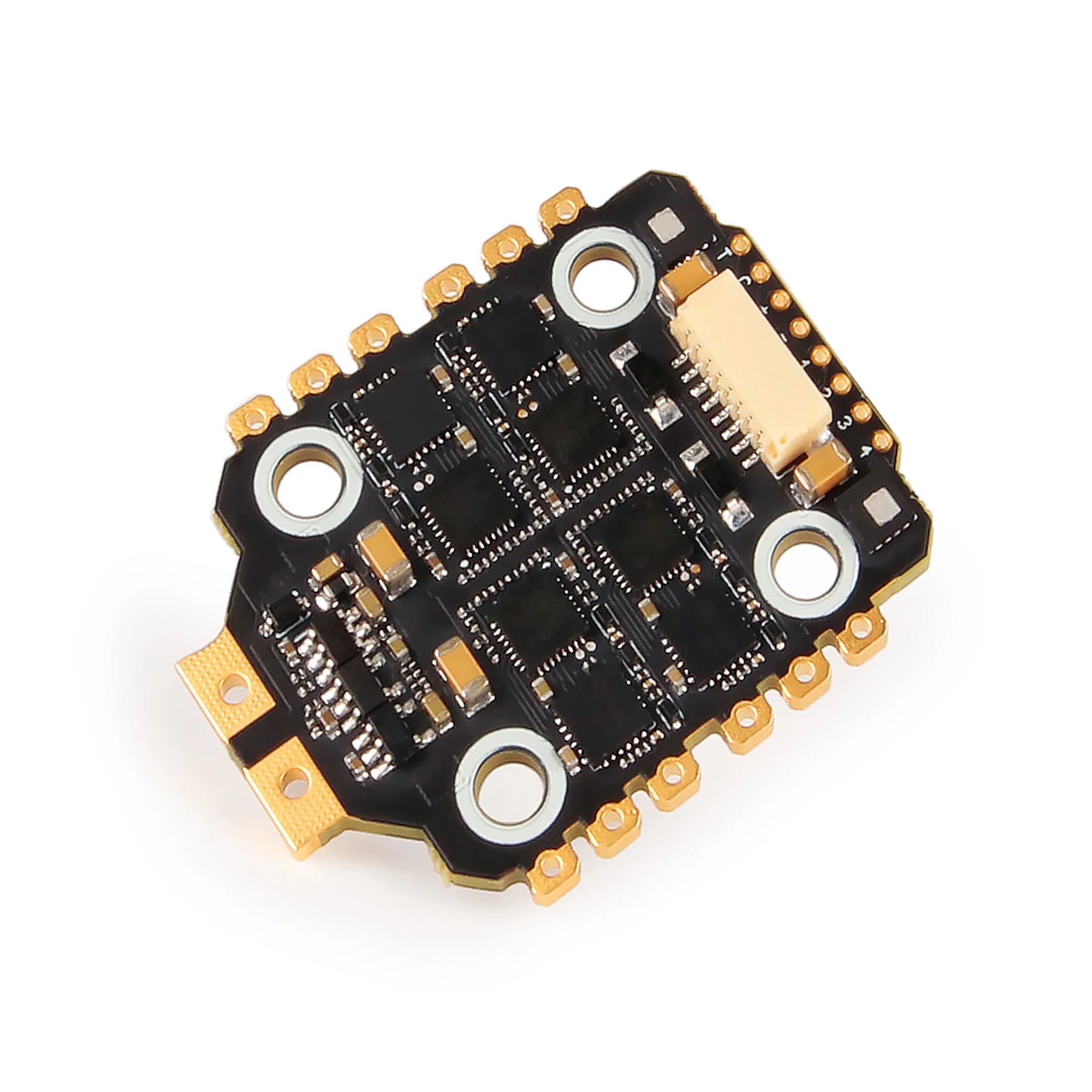

Tekko32 F4 4in1 Mini 50A ESC (AM32)

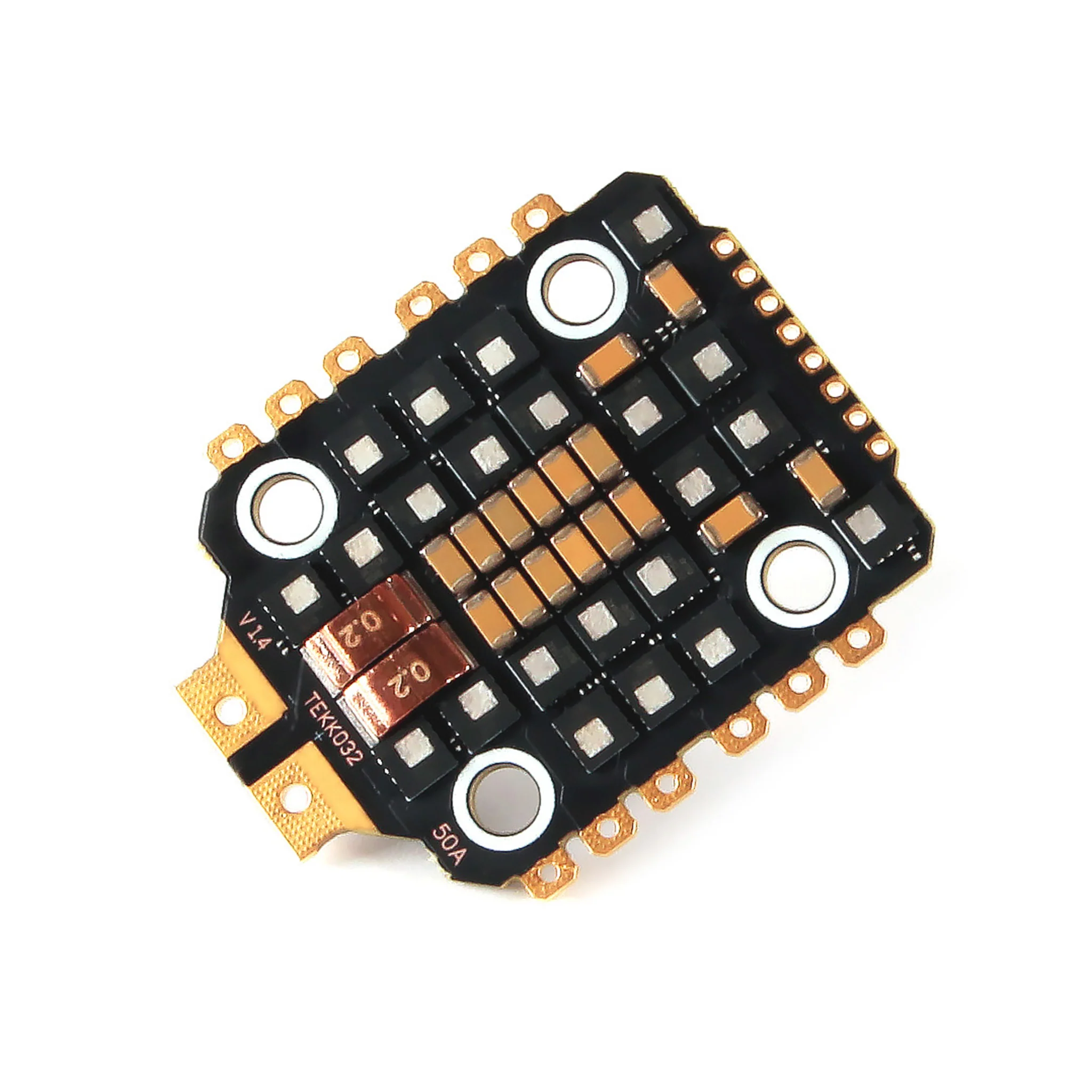

Product image 1
1 / 9
+4

Tekko32 F4 4in1 Mini 50A ESC (AM32)

feature:

  • All new High-quality MOSFETs with low internal resistance & heat generation, and individual metal heatsink
  • New and faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
  • Separate drive & control circuit, reducing the electrical interference to the control circuit

Specification:

  • Continuous current: 50A x4
  • Burst current: 60A x4
  • Battery support: 4S
  • PWM frequency: 16k to 96k
  • Support DShot 150/300/600/1200/2400
  • Support MultiShot/OneShot/Proshot/PWM, etc.
  • Ā ESC telemetry SupportĀ
  • Onboard analog current sensor
  • 1000uf 35v capacitor included
  • Mounting holes: 3.6mm @ 20x20mm, compatible with either M2& M3 Rubber Gourmet (Included)
  • Dimensions: 32 x 40 mm

    Pin Diagram:

    Package Included:

    • Tekko32 F4 4 in 1 mini 50A ESC *1
    • M2 Anti-Vibration Silicone Grommet Insert *4
    • M3 Anti-Vibration Silicone Grommet Insert *4
    • Electrolytic capacitor: 1000uF 35v *1
    • 8pin to 8pin 1mm pitch 65mm cable*1
    • 8pin to 8pin 1mm spacing 25mm cable*1

    Reference Link

    AM32 ESC Firmware OverviewĀ
    AM32 ESC Configurator
